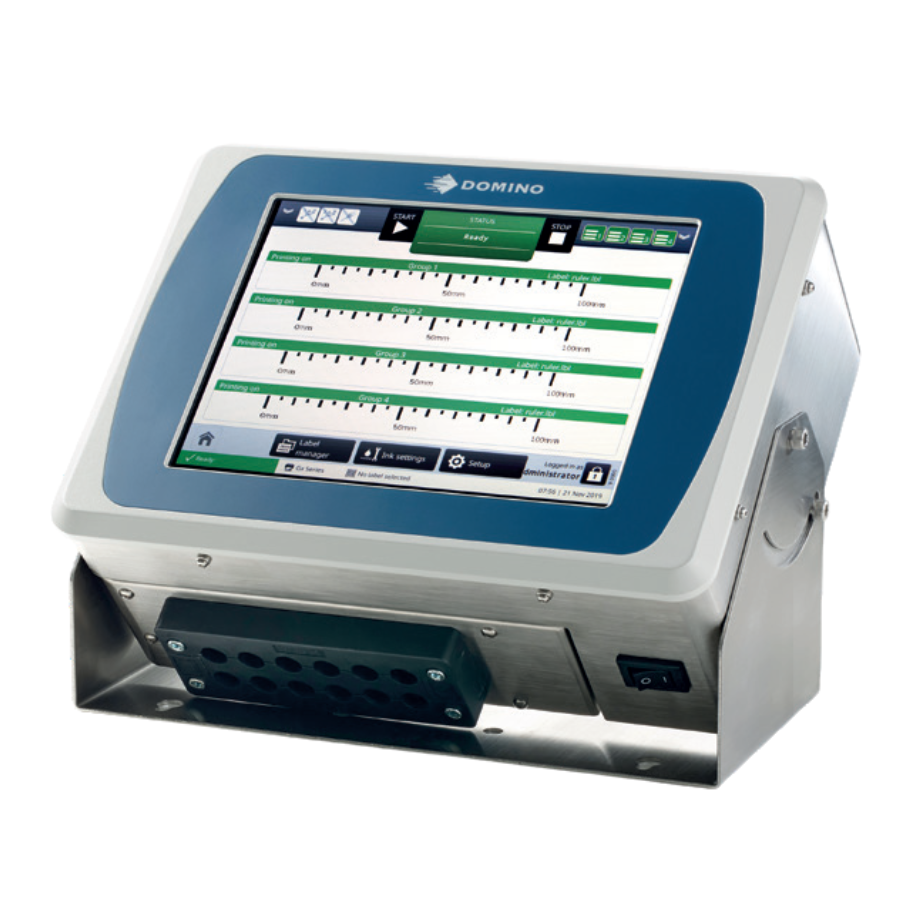

Gx SERIES

The Gx Series printers are designed for high-resolution printing at high speeds.

A single controller can manage up to four printheads, which can be configured

to run across multiple production lines or for large-format printing.

G50i

ideal for coding both primary packaging and outer cartons

Gx150i

versatile TIJ printer

for high-speed,

graphic-quality coding

Gx350i

item-level serialization and fast data transfer


Gx-OEM

full integration with production machinery; up to 4 printheads

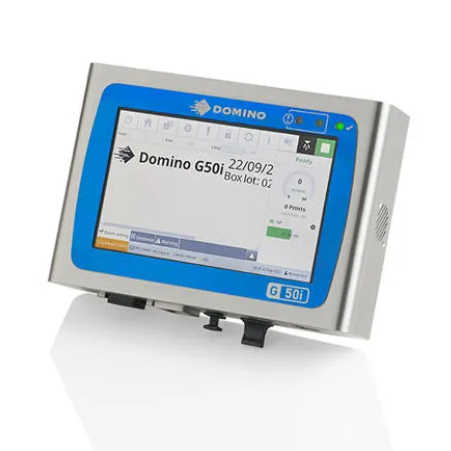

G50i

Available printhead types: GP (General Purpose) and EXT (Extended)

Print height:

  • Up to 12.7 mm with the GP option, ideal for all your standard and high-speed coding needs

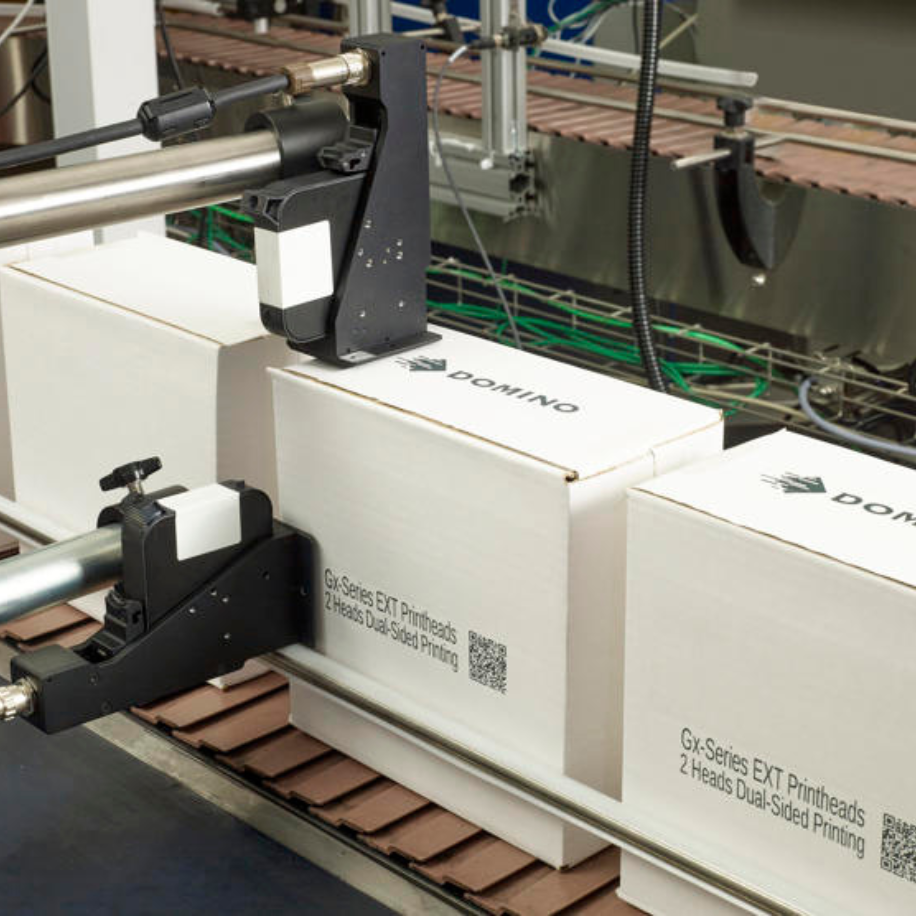

  • 26.1 mm with the EXT option, suitable for larger machine-readable codes and outer case coding

G50i Performance on High-Speed Production Lines:

  • Up to 76 m/min with the GP option
  • 60 m/min with the EXT option at 300×300 dpi (depending on ink)

High-resolution printing of human- and machine-readable codes:

  • Up to 600×600 dpi with the GP option
  • Up to 300×600 dpi with the EXT option

Ink types: Water- and solvent-based inks suitable for porous, semi-porous, and non-porous substrates, including paper, cardboard, plastic, metal, films, and foils

Gx150

Up to 2 printheads

Print height:

  • 1 printhead = 12.7 mm
  • 2 printheads = 25.4 mm

Print speed:

  • 300 m/min at 60 dpi resolution
  • 30 m/min at 600 dpi resolution

Printhead cable length options: 3/6/12/25 m

External interfaces: I/O, 2×USB, RS232c, 2×LAN

Communication: Ethernet / Dynamark protocol, EDC (serial, TCP, USB)

7" Touch Screen



Gx350

Up to 4 printheads

Print height:

  • 1 printhead = 12.7 mm
  • 2 printheads = 25.4 mm
  • 3 printheads = 38.1 mm
  • 4 printheads = 50.8 mm

Print speed:

  • 300 m/min at 60 dpi resolution
  • 30 m/min at 600 dpi resolution

Printhead cable length options: 3/6/12/25 m

External interfaces: I/O, 2×USB, RS232c, 2×LAN Communication: Ethernet / Dynamark protocol, EDC (serial, TCP, USB)

10" Touch Screen

Gx-OEM

Up to 4 printheads

Dimensions: 64 mm × 200 mm × 159 mm

Print height:

  • 1 printhead = 12.7 mm
  • 2 printheads = 25.4 mm
  • 3 printheads = 38.1 mm
  • 4 printheads = 50.8 mm

Compact printheads are easy to install on production lines and can be mounted up to 25 m from the controller.

Control up to 4 printheads from a single controller for label heights up to 50.8 mm or for multiple individual applications.

Communication: Ethernet / Dynamark protocol, EDC (serial, TCP, USB)
